Product Features

• Official ExpressLRS 2.4GHz Nano receiver from BETAFPV
• Ultra-low latency and long-range RC link performance
• Compact and lightweight design for micro and freestyle FPV drones
• Built-in high-sensitivity TCXO crystal oscillator for stable signal transmission
• Compatible with ExpressLRS transmitters and modules
• Supports WiFi firmware updates and configuration
• Fast packet rates for responsive drone control
• Excellent anti-interference capability for reliable flights
• Ideal for Tiny Whoop, freestyle, racing, and long-range FPV builds
• Easy solder connections with flexible installation options

Product Description

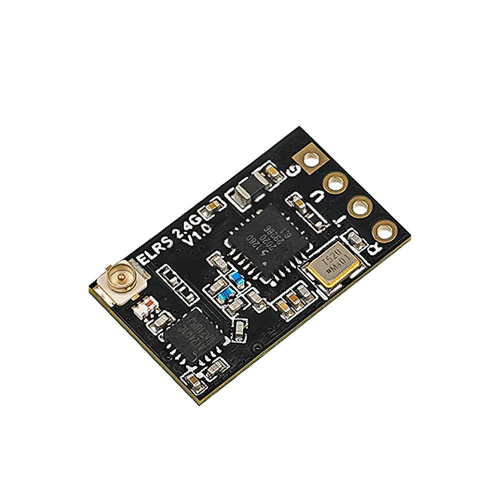

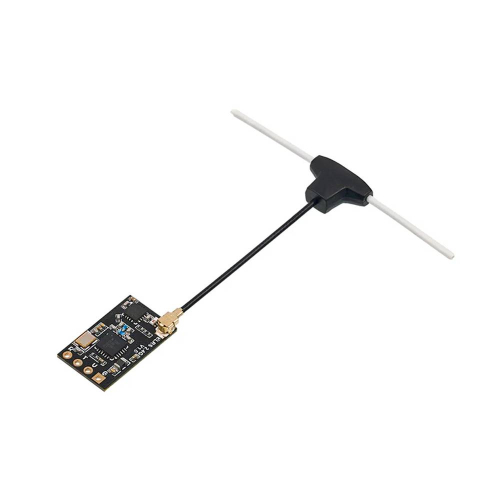

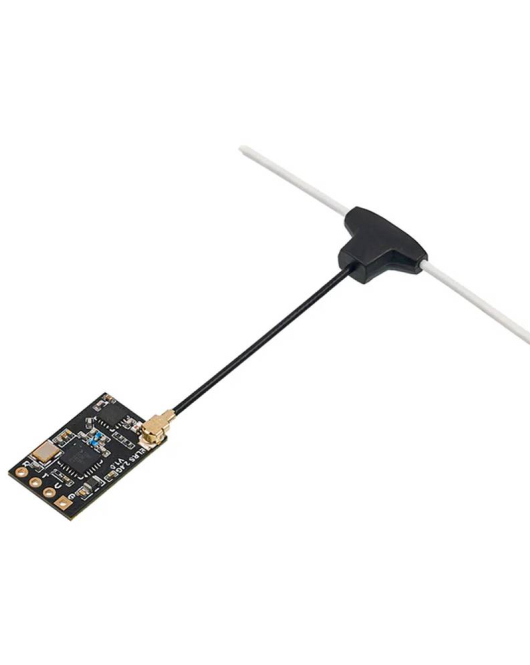

The BETAFPV ELRS 2.4GHz Nano Receiver is a lightweight, high-performance ExpressLRS receiver designed for FPV pilots who demand ultra-low latency, stable connectivity, and reliable long-range control. Built around the popular ELRS open-source protocol, this nano receiver delivers exceptional responsiveness and signal reliability for racing, freestyle, and cinematic drone applications.

Its compact nano-size design makes it perfect for Tiny Whoop and lightweight FPV drone builds where space and weight are critical. Equipped with a high-quality TCXO oscillator, the receiver maintains stable frequency performance and reduces signal drift for improved reliability.

Supporting WiFi firmware updates and seamless compatibility with ExpressLRS transmitters, the BETAFPV ELRS Nano Receiver is an excellent upgrade for pilots looking for dependable control performance and easy setup.

Specifications

• Brand: BETAFPV
• Product Type: ELRS Nano Receiver
• Frequency: 2.4GHz
• RF Protocol: ExpressLRS (ELRS)
• Telemetry Power: 12dBm
• Antenna Connector: SMD Ceramic Antenna / External Antenna (varies by version)
• Input Voltage: 5V
• Firmware Update: WiFi Supported
• UART Interface: CRSF Protocol
• TCXO: Built-in
• Dimensions: Approx. 11mm × 18mm
• Weight: Approx. 0.7g
• Compatibility: ExpressLRS 2.4GHz TX Modules and Radios
• Application: FPV Racing, Freestyle, Tiny Whoop, Long Range

What’s Included

• 1 × BETAFPV ELRS 2.4GHz Nano Receiver
• 1 × Antenna (version dependent)
• 1 × Heat Shrink Tube
• 1 × User Manual
